Spectrophotometer Data Collecting Setup.

Purpose: To plot the Absorption spectra and Transmittance spectra of the samples.

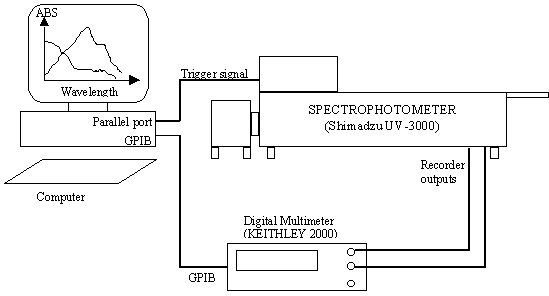

Spectrophotometer data collecting setup block diagram.

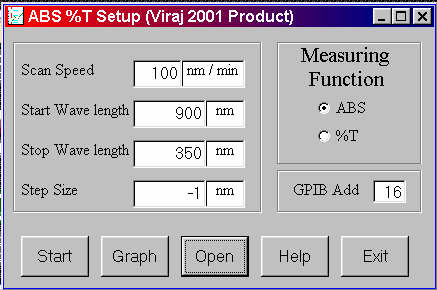

User interface of the spectrophotometer data collecting software (parameter-setting screen).

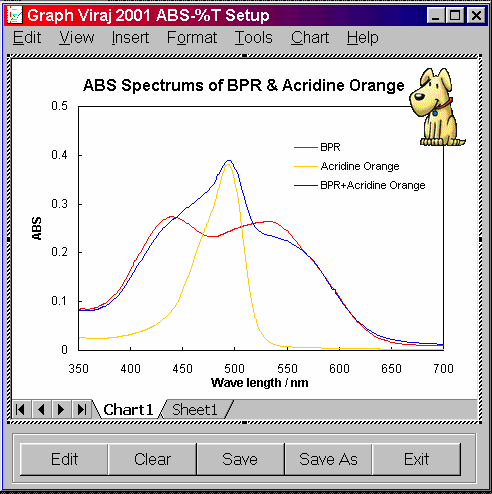

Graph display panel of the spectrophotometer data collecting software.
