Long-term Stability Measurements Setup for solar Cells.

Purpose: To record how solar cell characteristics (Efficiency, Fill Factor, Open circuit Voltage and Short circuit Current) vary with time.

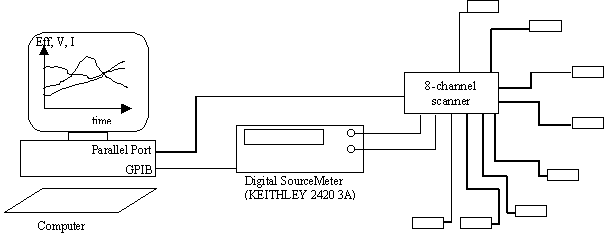

Block diagram of the Long-term Stability Measurements Setup

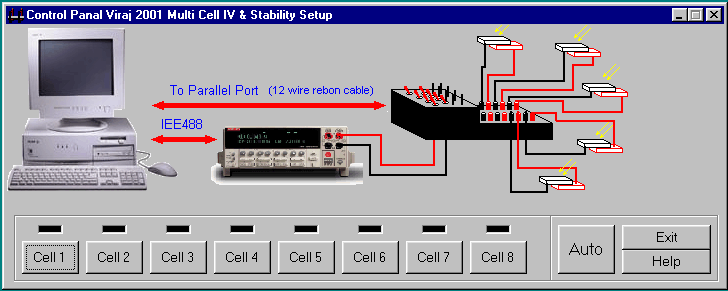

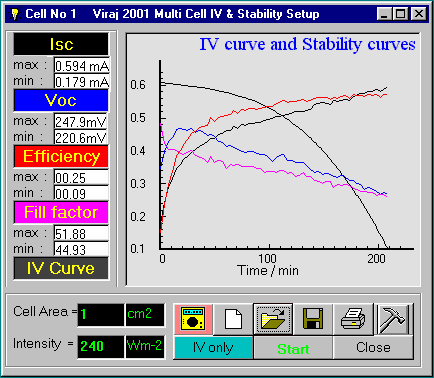

User interfaces of the software

Main features:
Up-to 8 samples can be connected simultaneously.
Plot of Efficiency vs. time, Fill Factor vs. time, Open circuit Voltage vs. time, Short circuit Current vs. time graphs.
Time range can be changed from several seconds to several months.
