I-V measurement Setup.

Purpose: To measure photocurrent (I) vs. photo voltage (V) characteristic of the solar cells and find the conversion efficiency

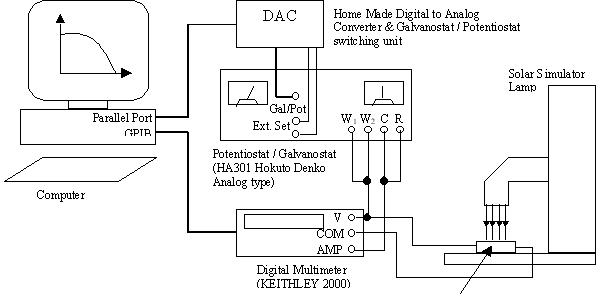

Block diagram of the I-V measurement setup

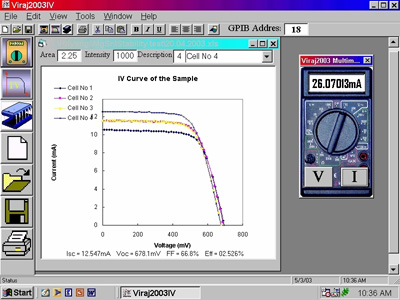

User Interface of the I-V measuring software

Main features:
            Plot I vs. V curve of solar cell.
            Calculate Open circuit Voltage, Short circuit Current, Efficiency and Fill
            Factor of the solar cell.
