x-z-θ stage controller

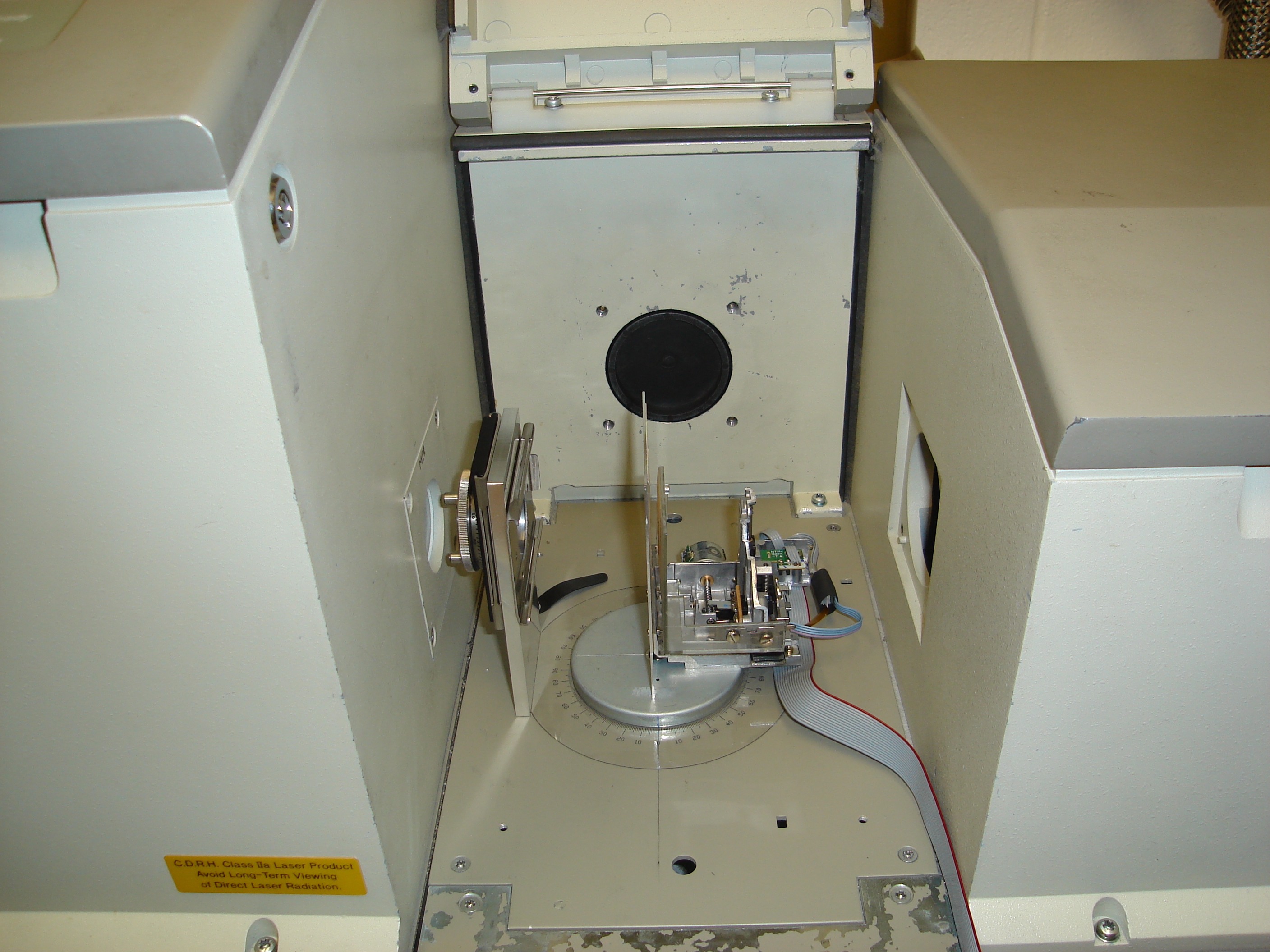

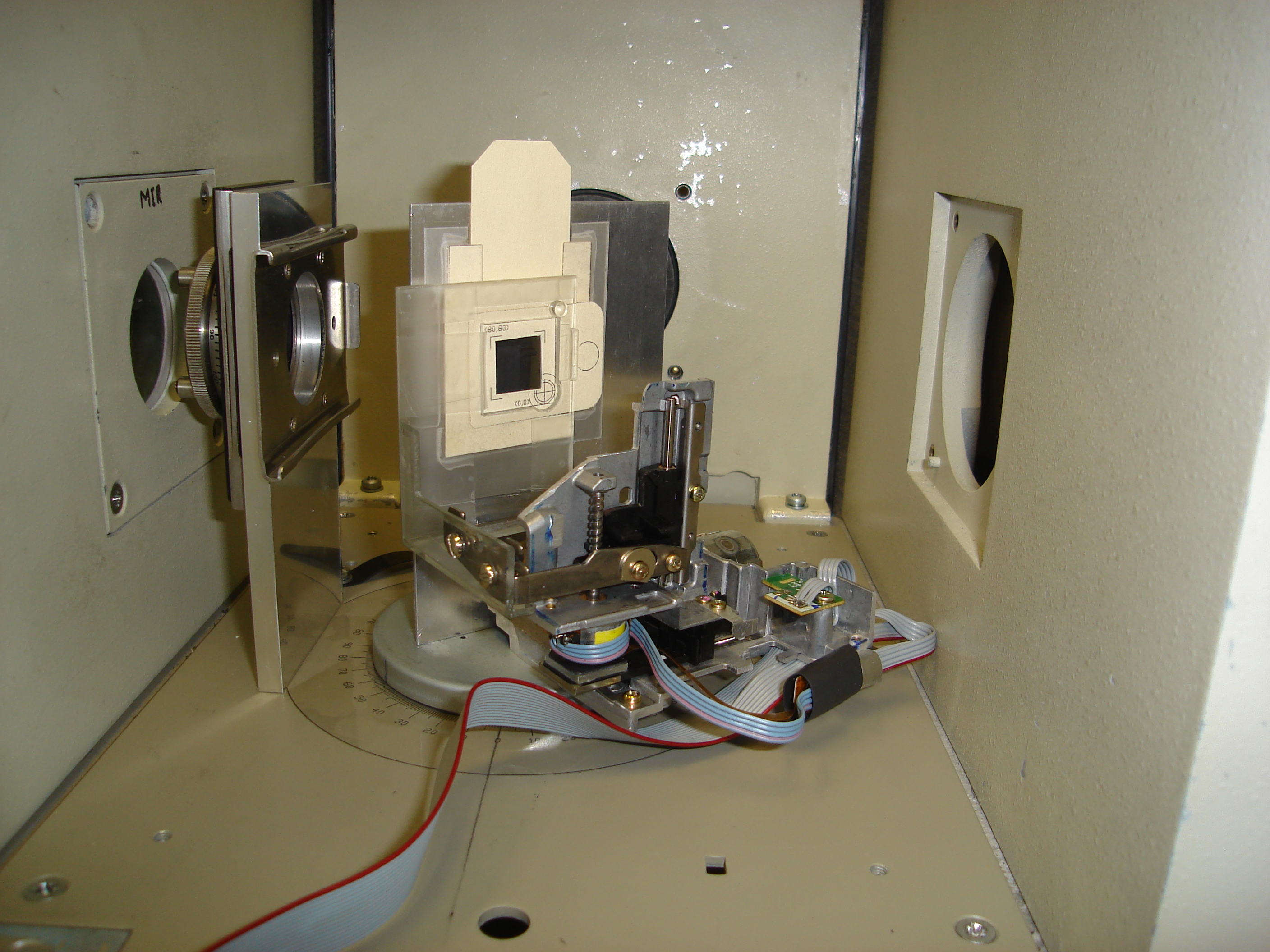

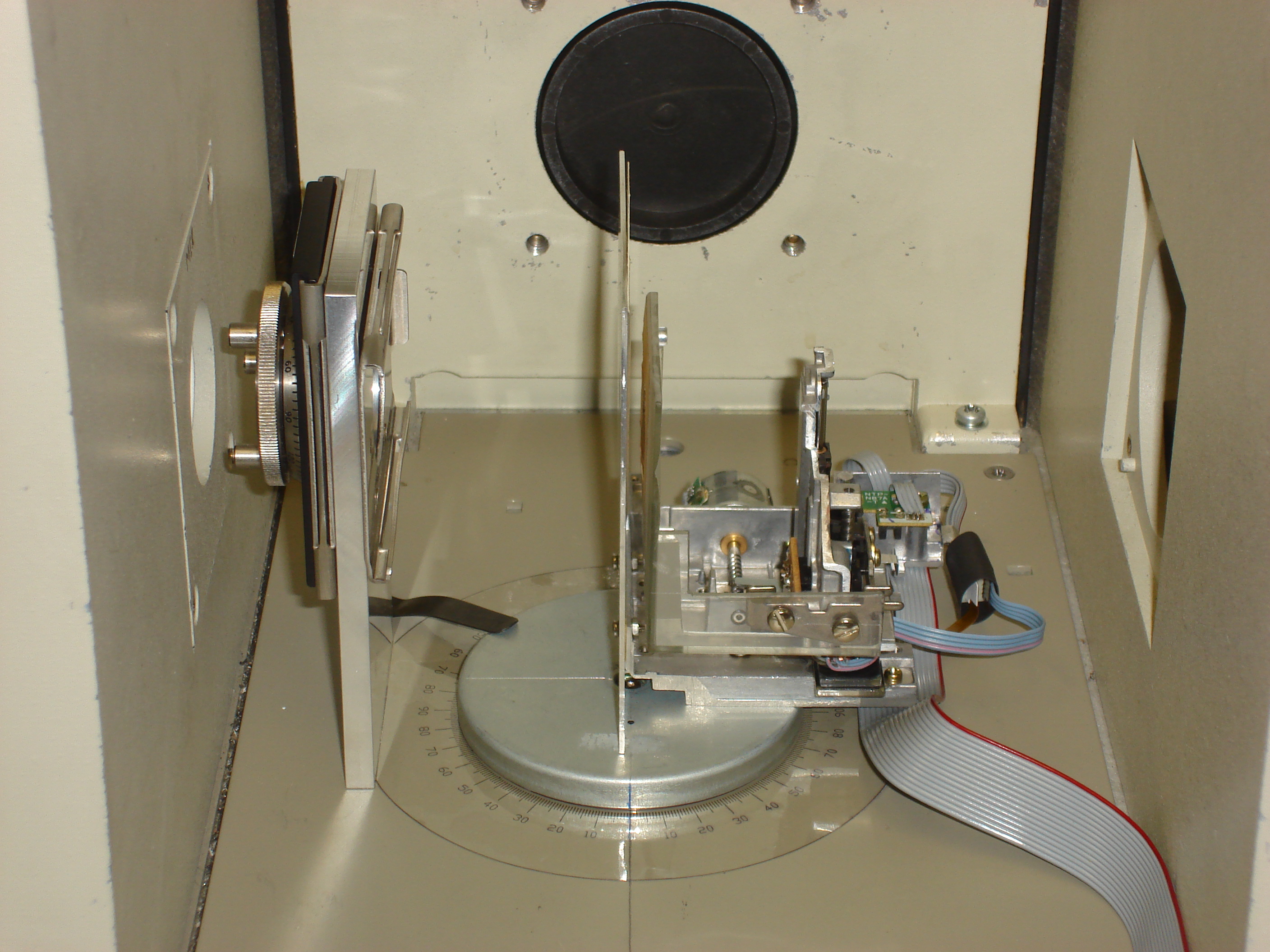

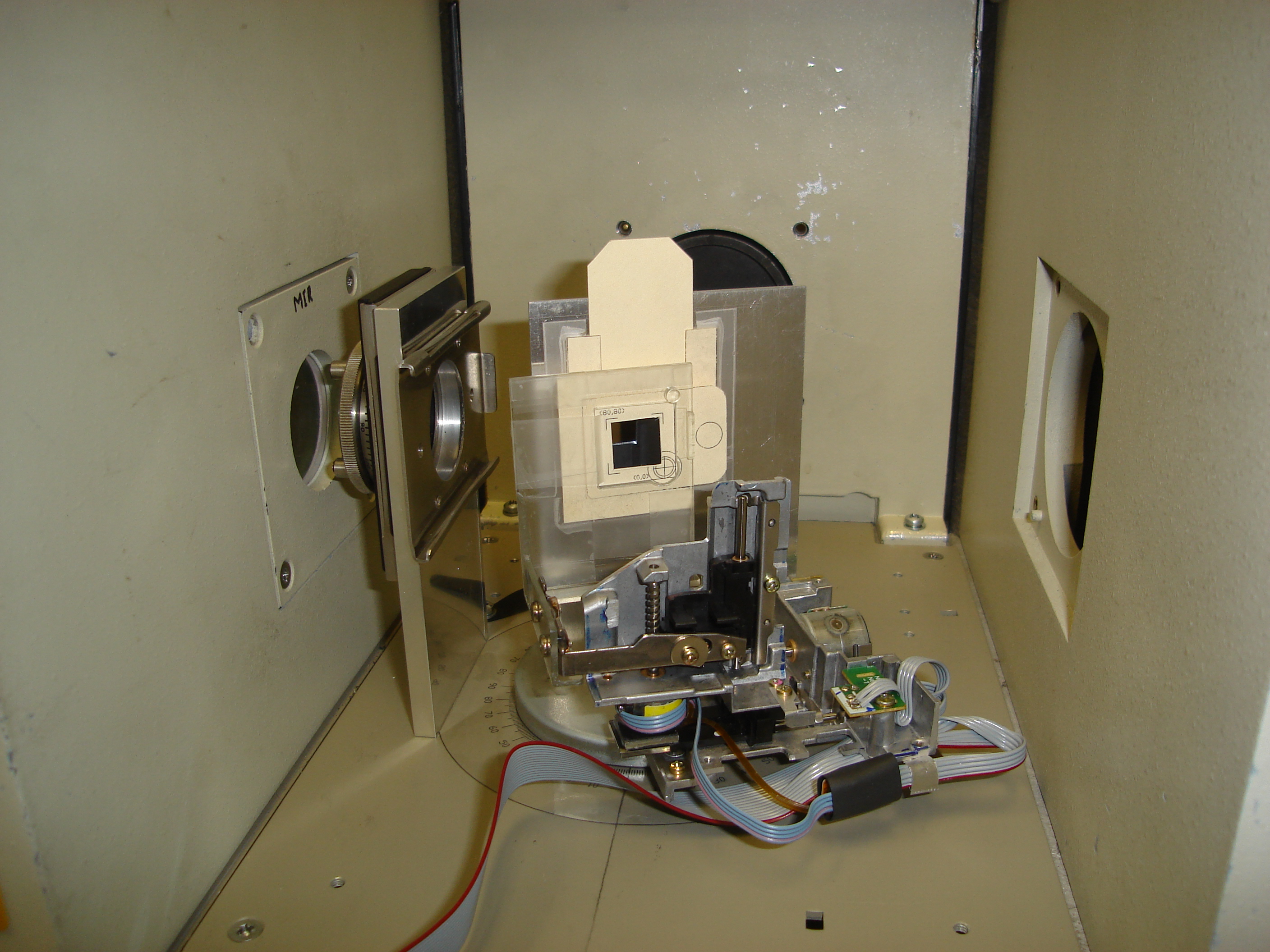

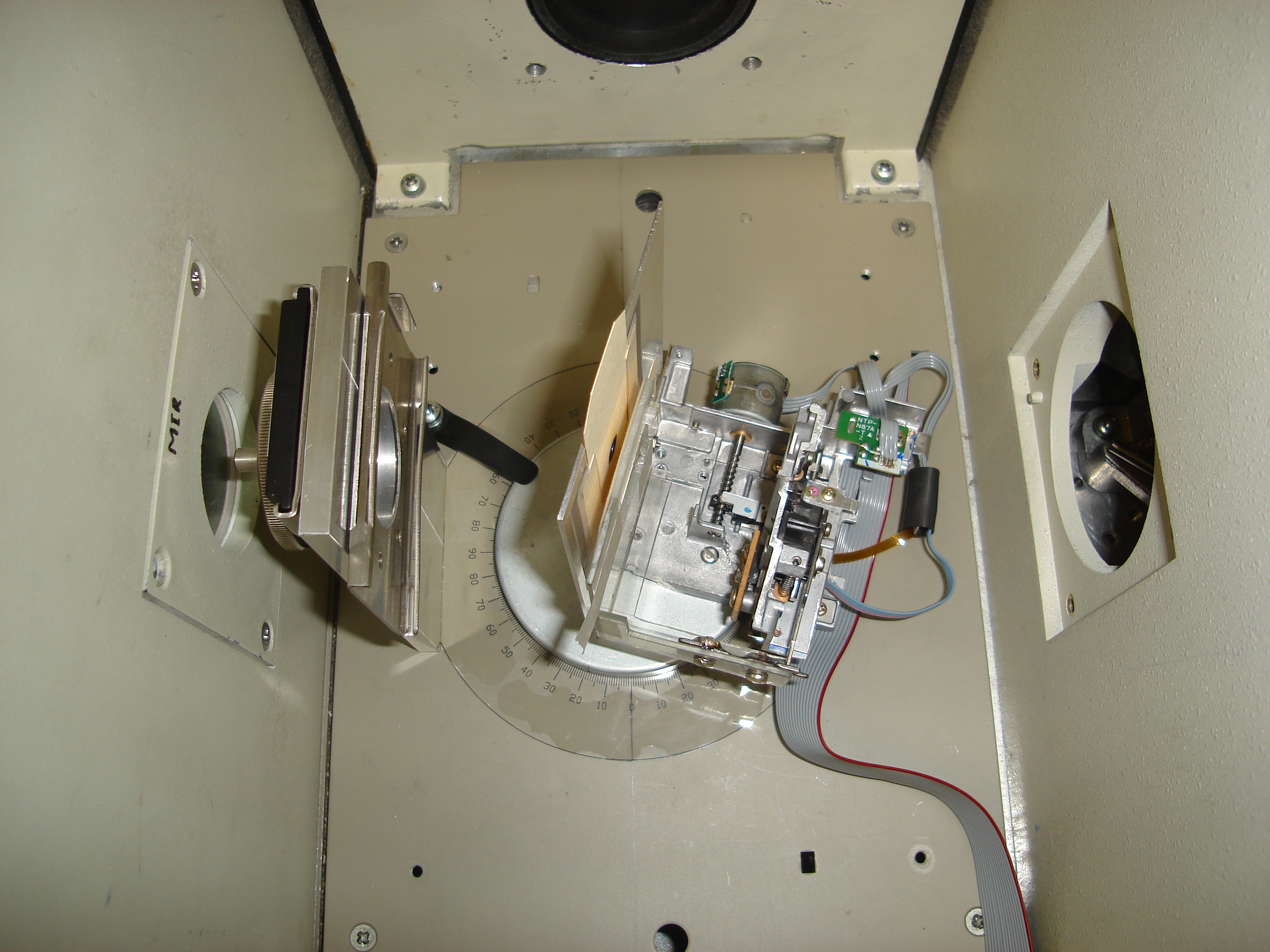

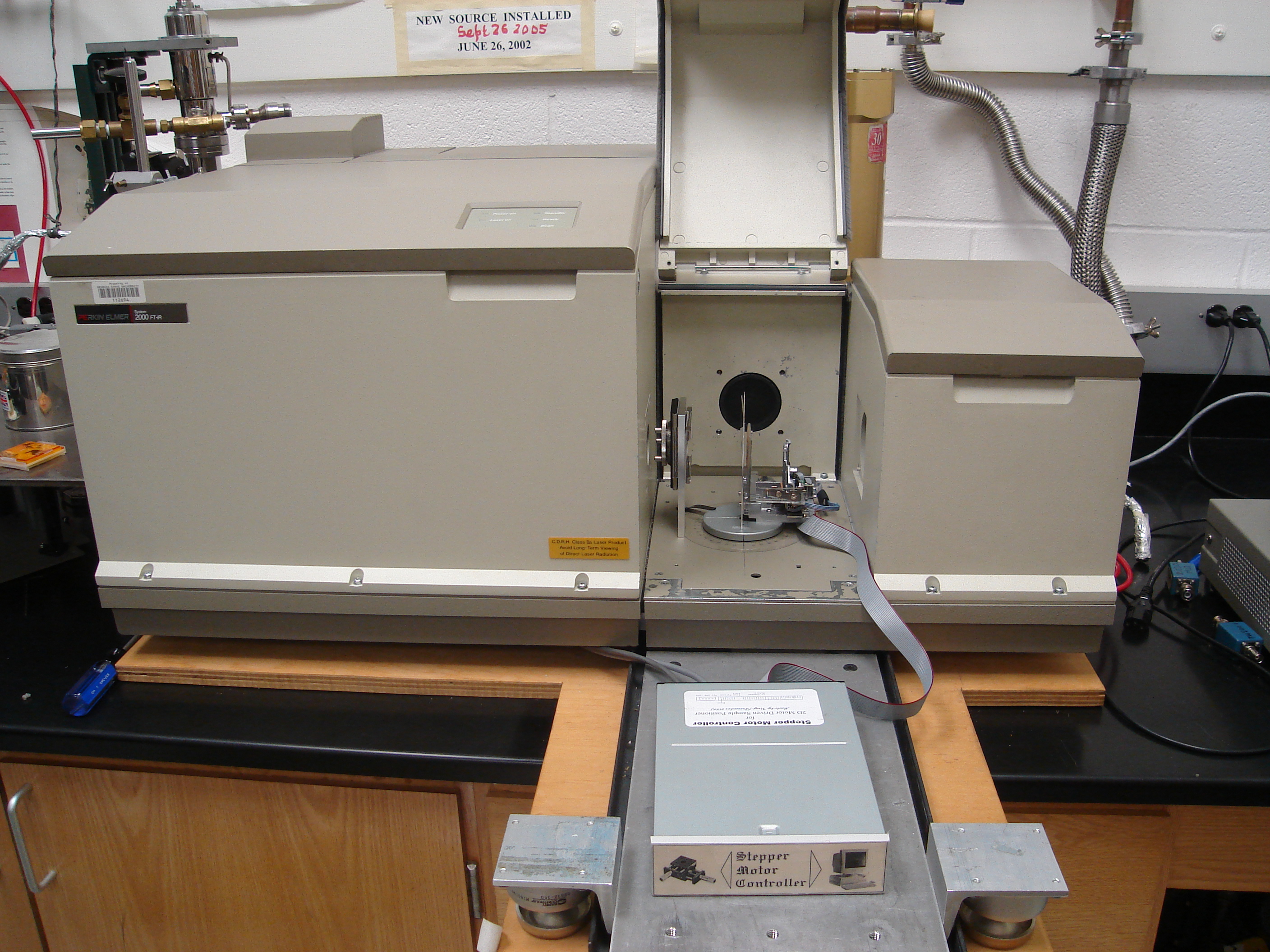

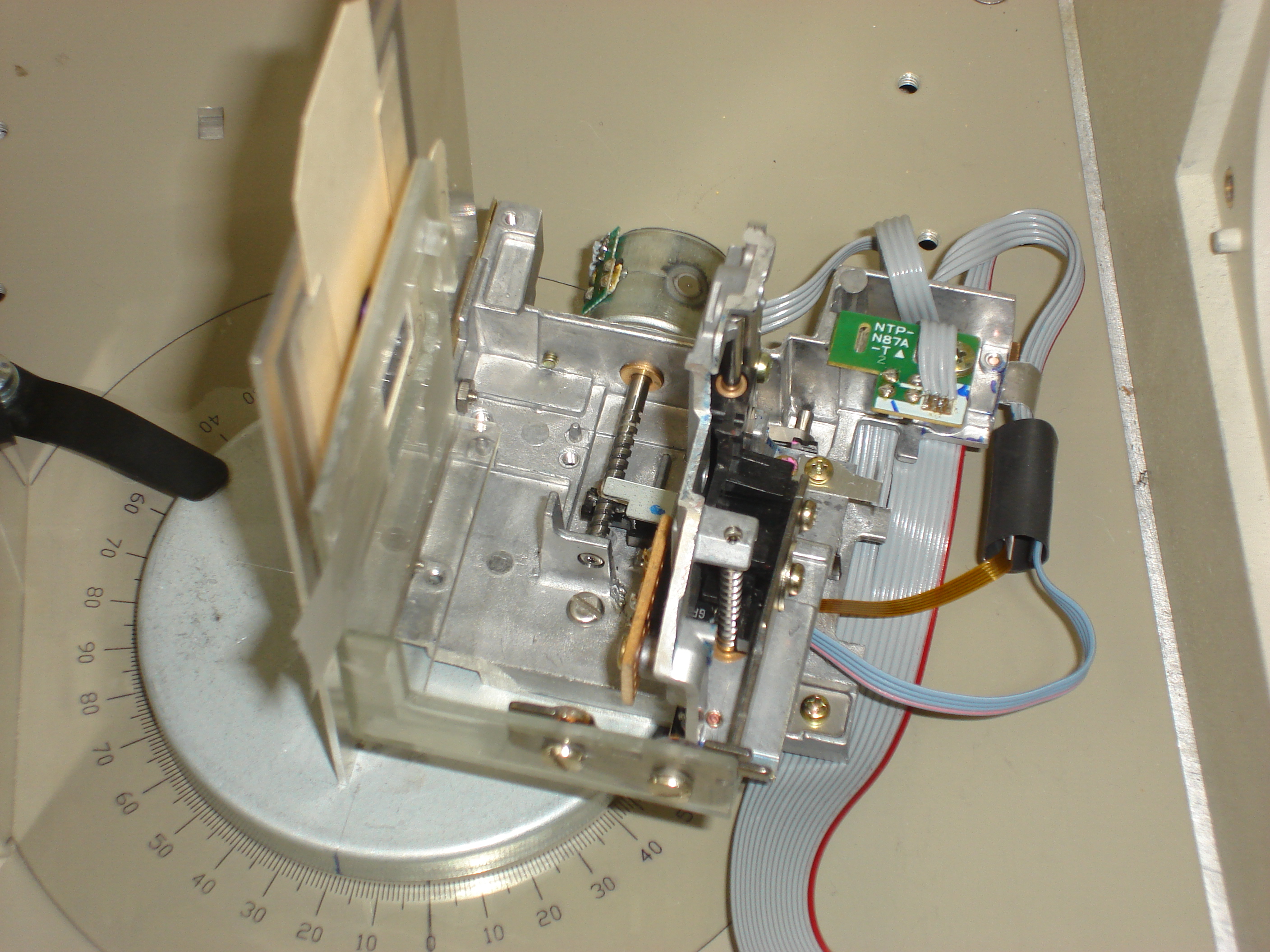

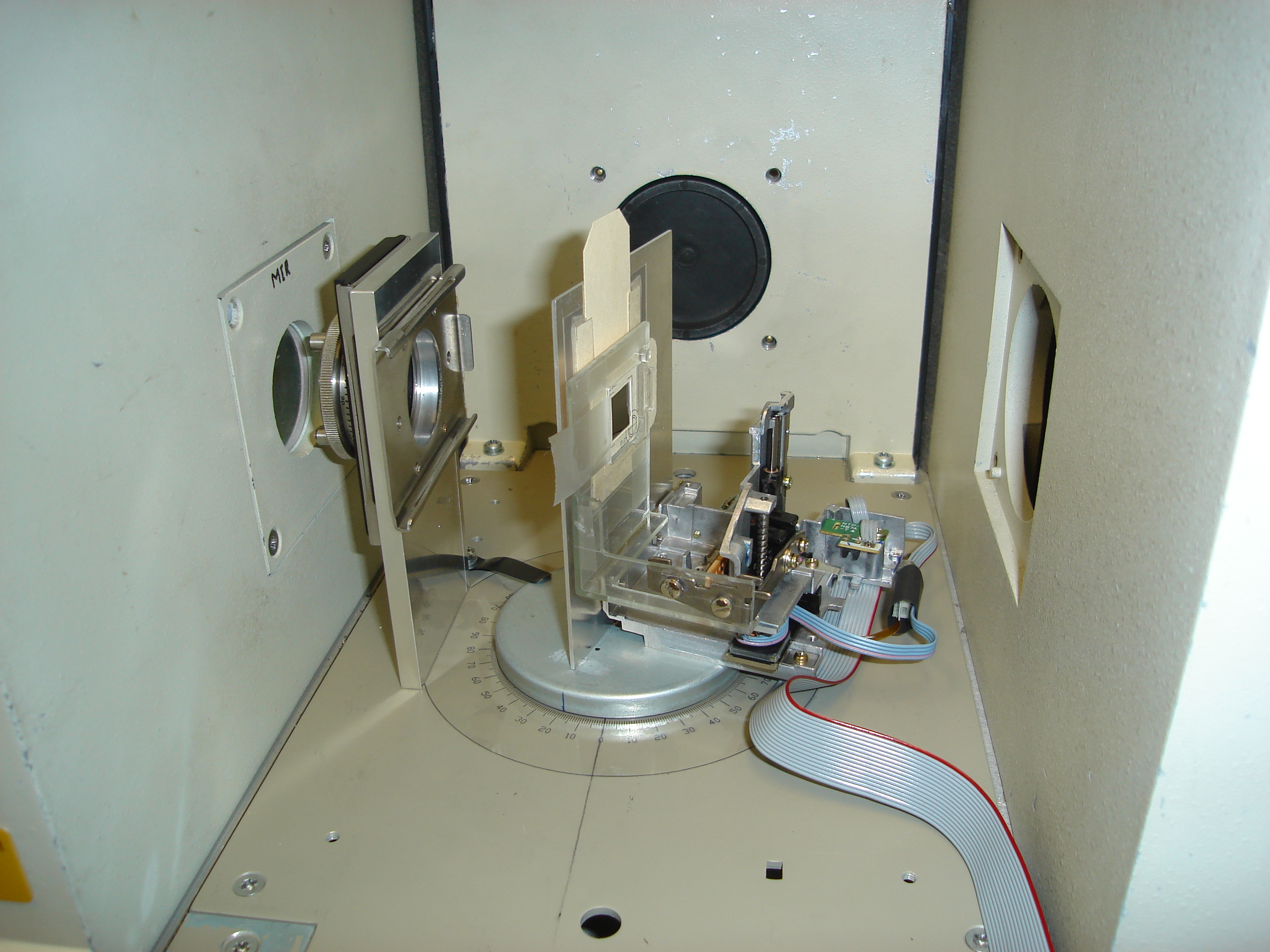

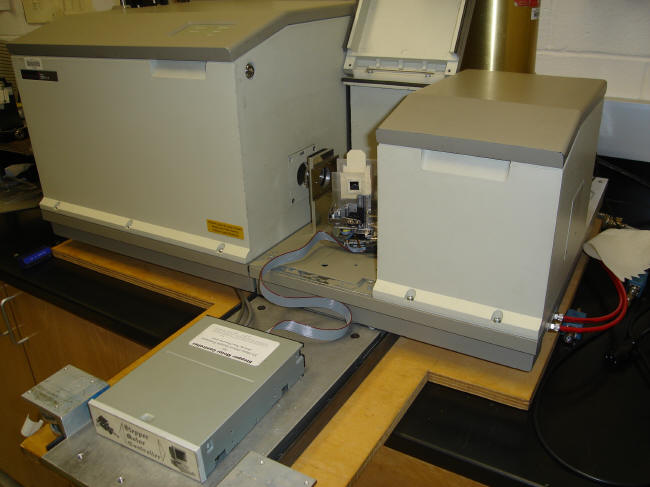

An inexpensive x-z-θ sample stage was constructed and tested. This stage can be used with an FT-IR to perform transmission measurements at different points on the samples at different incident angles with 80 μm special resolution in the x-z directions and 1-degree accuracy in the angle θ. The mechanical part of the stage was constructed by using stepper motors removed from old computer floppy disk drives. A software program was developed to control this stage using Visual Basic.
